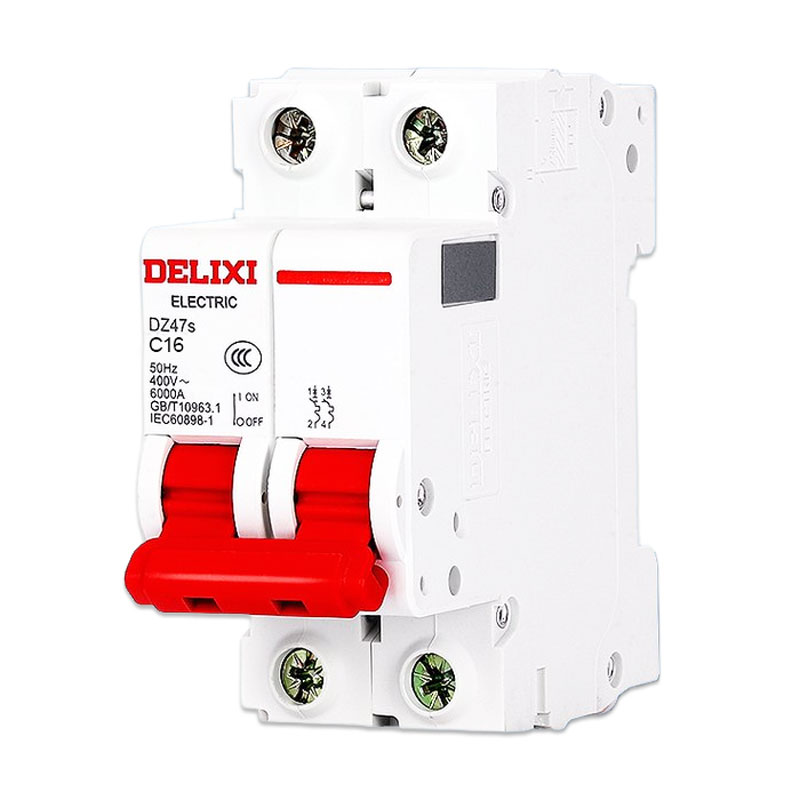

2P 16A Air Breaker C Curve 6kA DIN Rail Mount
ModelDELIXI DZ47s-C16
High-performance 2P 16A air breaker for industrial distribution panels. Features 6kA breaking capacity and C curve. Ideal for solar control systems and OEMs.
Features
- 2P16A Air Breaker
- Poles:2P
- Rated Current: 16A
- Rated Voltage: 400V AC
- Breaking Capacity: 6kA
- Tripping Curve: C Curve
- Frequency:50/60Hz
- Mechanical Life:>20,000
- Electrical Life:> 10.000
- Mounting: DlN rail mount
- Application: Suitable for solar, control, distribution, andindustrial panels
DELIXI DZ47s-C16
Specification
Specification
- Model
- DELIXI DZ47s-C16
- Rated Current (In)
- 16A
- Number of Poles / Voltage
- 2P / 400V
- Tripping Curve
- Type C
- Breaking Capacity
- 6kA, compliant with IEC/EN 60898-1
- Frequency
- 50 / 60 Hz
- Protection Performance
- Overload protection, short circuit protection, isolation control
- Operating Temperature
- –35°C to +70°C
- Storage Temperature
- –40°C to +85°C
- Installation Height
- Up to 2000 m above sea level
- Protection Level
- IP20
- Installation
- Standard 35 mm DIN rail
