Smart Ethernet Box

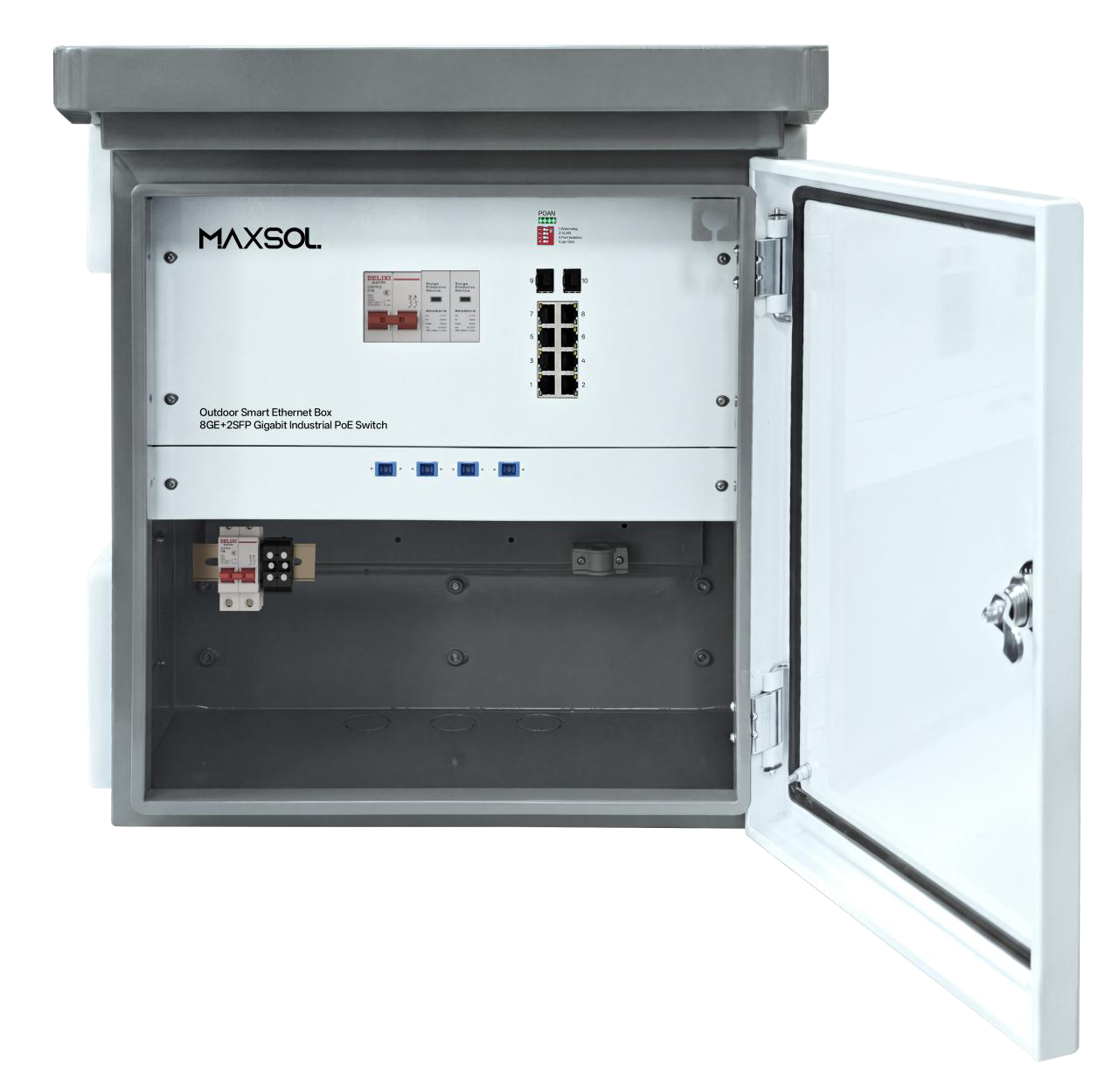

Outdoor Smart Ethernet Box

ModelSBOX1802SFG-I

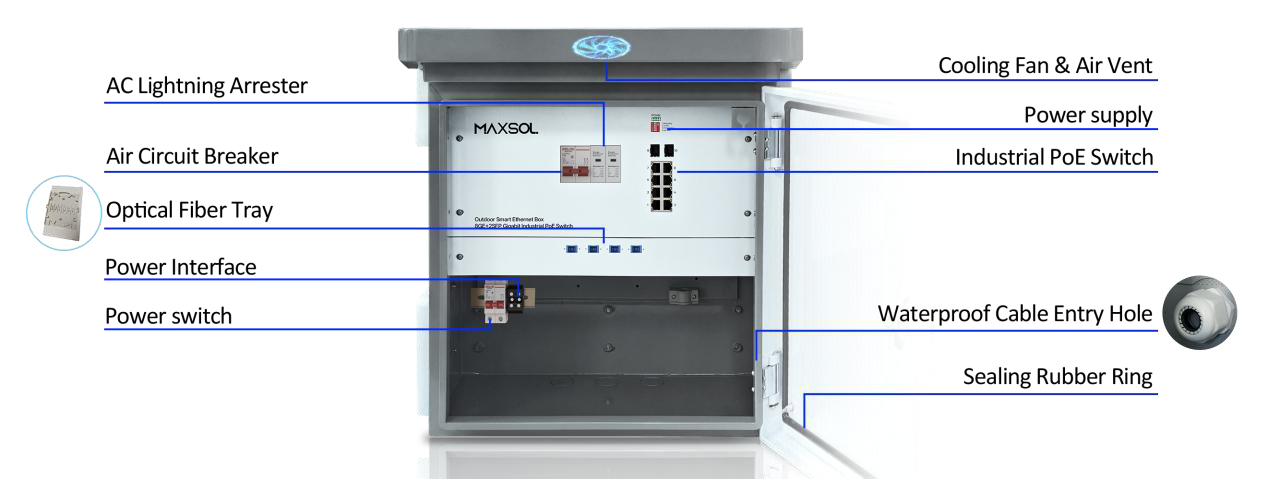

Overview

The SBOX1802SFG-I is an outdoor industrial PoE switch box featuring 8 × Gigabit PoE ports and 2 × Gigabit SFP slots. Designed for harsh environments with an operating temperature range of -40°C to +75°C, it provides industrial-grade surge protection, making it ideal for outdoor surveillance, intelligent transportation, rail transit, and smart city applications. Equipped with Maxsol’s Smart DIP Switch, it supports Watchdog, VLAN Isolation, Port Isolation, and Port Priority (QoS), ensuring stable, reliable, and efficient network performance.

Features

8*10/100/1000M PoE ports+2*100/1000M SFP port Industrial PoE Switch, port 1-8 support IEEE 802.3af/at;
PoE port1~port8 support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power is 30W/port;
Support AI Watchdog, Port isolation, VLAN, Port Priority +QOS
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standards;
Pin Assignment 1,2,3,6
Operation TEMP:-40~75°C
Input voltage: AC100-240V, 50/60Hz
IP protection level: IP65;

SBOX1802SFG-I

Specification

Model: SBOX1802SFG-I

Interfaces

Interface: 8*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber slot port (Data)
Ethernet Port: Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
DIP Switch: AI Watchdog, Port isolation, VLAN, Port Priority +QOS

PoE

PoE Standard: IEEE802.3af/at
SFP Port: Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Power Adaptor: 300 W

Physical Characteristics

LED Indicators: PWR, OPT, NMC, ALM
Power Interface: AC Input
Optical Cable: Multimode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Network Topology: Support Star topology, Bus topology, Tree Topology, Hybrid topology
Input voltage: AC100-240V, 50/60Hz
Total Power consumption (POE): < 246 W
Voltage Alarm: Support

Fan

RPM: 3000 ±10%
SIZE: 92*92*25mm
Power Input: 220V

MCB(Miniature Circuit Breaker )

Rated operational voltage (Ue): 230/400V AC
Rated current: 6-63 A
Rated frequency: 50Hz
Working Temperature: -35℃+75℃
Protection Class: IP40

Environment

Operating temperature: -40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃
Storage temperature: -40℃~+85℃
Relative humidity: 5%~95% non-condensing
Thermal methods: Auto Fans Cooling
MTBF: 100,000 hours
