Model: CS3015 (30W15AH12.8V)

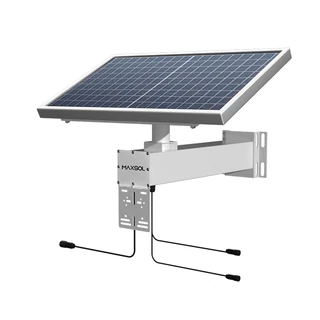

30W Solar Power System for Industrial CCTV
Deploy 30W solar power for CCTV with 192Wh LiFePO4 battery & MPPT. IP65 industrial design ensures stable off-grid performance. Ideal for security integrators.
Key features
- CCTV Solar Power Supply 30W15AH 192WH Solution
- Solar panel: 30W monocrystalline silicon solar panel
- Battery: 15AH12.8V LifePO4 Battery, total: 192WH
- MPPT Solar Controller, 2*DC12V Output Port
- Installation Bracket for Solar Panel and Battery
- Other accessories: Battery Mount, Screws, DC Cable, etc
- Optional Selection: RS485
Specification
Solar Panel Specification
- Model
- CS3015 (30W15AH12.8V)
- Communication interface
- RS485 (Optional)
- Maximum power
- 30W (1000W/m² standard lighting test conditions)
- Open circuit voltage
- 22VDC
- Maximum current
- 4.4A

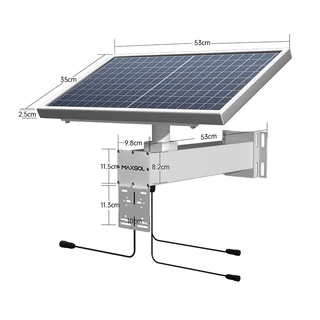

- Solar Panel Dimensions
- 530mm*350mm*25mm
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/15AH (192WH)
- Charging indication
- LED status indicator
- Charging voltage
- 15-18VDC
- Maximum charging current
- 6A
- Output voltage
- 12±0.2VDC
- Maximum output current
- 3A (total of 2 outputs)
- Battery pack overcharge voltage
- 14.6VDC
- Battery pack over-discharge voltage
- 10VDC
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 2 outputs in total
- Power on power consumption
- 0.5±0.1W (normal temperature, no load when powered on)
- Waterproof level
- IP65
- Storage temperature
- 0~45℃
- Operating temperature
Charging: -10~50℃
Discharging: -10~60℃
- Battery case Dimensions
- 500mm*98mm*82mm
Battery life and charging
- Battery life when powered off
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Battery life when powered on
- About 20 days (normal temperature, no load)
- Battery life with load
- Actual operating time depends on the connected load, battery capacity and operating conditions. For reference, the system runtime can be estimated by dividing the usable battery capacity (Wh) by the total load power (W), assuming no solar charging.
- Recharge time (0~100% battery)
- Approx. 2–3 days under standard sunlight conditions (4–5 peak sun hours per day, normal temperature). Actual charging time may vary depending on sunlight intensity, system efficiency and power consumption.
All-in-one Package
- Size
- 720*360*225MM
- Weight (Include bracket and accessories)
- 8.05KG
Solar Panel Specification
- Model
- CS3015 (30W15AH12.8V)
- Communication interface
- RS485 (Optional)
- Maximum power
- 30W (1000W/m² standard lighting test conditions)
- Open circuit voltage
- 22VDC
- Maximum current
- 4.4A
- Solar Panel Dimensions
- 530mm*350mm*25mm
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/15AH (192WH)
- Charging indication
- LED status indicator
- Charging voltage
- 15-18VDC
- Maximum charging current
- 6A
- Output voltage
- 12±0.2VDC
- Maximum output current
- 3A (total of 2 outputs)
- Battery pack overcharge voltage
- 14.6VDC
- Battery pack over-discharge voltage
- 10VDC
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 2 outputs in total
- Power on power consumption
- 0.5±0.1W (normal temperature, no load when powered on)
- Waterproof level
- IP65
- Storage temperature
- 0~45℃
- Operating temperature
Charging: -10~50℃
Discharging: -10~60℃
- Battery case Dimensions
- 500mm*98mm*82mm
Battery life and charging
- Battery life when powered off
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Battery life when powered on
- About 20 days (normal temperature, no load)
- Battery life with load
- Actual operating time depends on the connected load, battery capacity and operating conditions. For reference, the system runtime can be estimated by dividing the usable battery capacity (Wh) by the total load power (W), assuming no solar charging.
- Recharge time (0~100% battery)
- Approx. 2–3 days under standard sunlight conditions (4–5 peak sun hours per day, normal temperature). Actual charging time may vary depending on sunlight intensity, system efficiency and power consumption.
All-in-one Package
- Size
- 720*360*225MM
- Weight (Include bracket and accessories)
- 8.05KG
