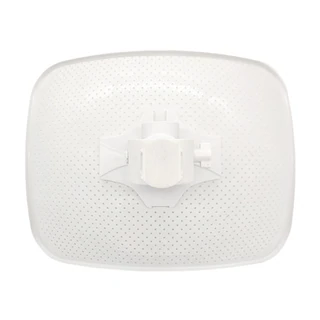

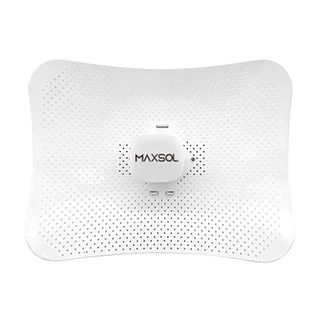

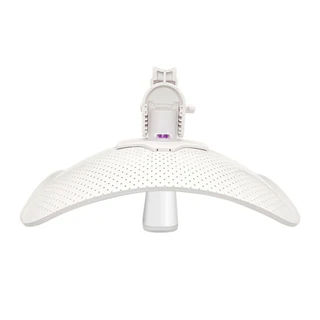

Long Range 10km 5.8GHz Wireless CPE Bridge

Specification

Model

CPE2910

WLAN standard

IEEE 802.11 a/n/ac or ipoll3

Radio mode

MIMO 2×2

Radio frequency band

5 GHz: 4.9 – 6.1 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)

Tx power

Up to 29dBm (country dependent)

RX sensitivity

-95 ~ -75dBm (country dependent)

Channel size

5, 10, 20, 40, 80 MHz

Modulation schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Data rates

802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Error correction

FEC, LDPC

Duplexing scheme

Time division duplex

40MHz

Modulation, Mbps: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30
Tx power, dBm: 26, 26, 27, 28, 29, 29, 29, 29, 29, 29
RX Sensitivity, dBm: -70, -72, -76, -78, -80, -84, -87, -92, -94, -95

80MHz

Modulation, Mbps: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65
Tx power, dBm: 25, 25, 26, 26, 27, 27, 28, 29, 29, 29
RX Sensitivity, dBm: -64, -66, -70, -72, -74, -78, -81, -85, -88, -90

Type

Integrated dual-polarized parabolic antenna

Gain

23dBi

Interface

10/100/1000 Base-T, RJ45

Dimensions

348mm × 266mm × 254mm

Weight

760g

Mounting

Pole mounting bracket included

Power supply

24 VDC passive PoE (AC to 24 VDC adapter included)

Power source

100 – 240V AC

Humidity

5 ~ 90% (non-condensing)

Full load power consumption

7W

Operating temperature

-40°C ~ +65°C

System monitoring

SNMP, Syslog, Web UI, WNMS

Configuration

WebUI, WNMS

Frequency range

4.9 – 6.1 GHz

Polarization

Dual linear

VSWR

<1.5

Azimuth beamwidth (H pol)

7°

Azimuth beamwidth (V pol)

7°

Elevation beamwidth

7°
